Azure Front Door: A Complete Guide to Getting Started

Suppose you are a Web Developer or an Administrator. In that case, you might have faced challenges such as slow loading times, high latency, network failures, or cyberattacks that affect your web applications' user experience and security. You might also wonder how to scale your web applications to meet the growing demand of your users across different regions and devices. These are some of the problems that Azure Front Door can help you solve.

Azure Front Door is a global entry point for your web applications that run on Microsoft’s massive global network. It acts as a reverse proxy that receives requests from your users and routes them to the best available backend based on proximity, health, and load. This blog will explore the details of Azure Front Door and see how it can benefit your web applications.

Table of Contents

1) What is Microsoft Azure Front Door?

2) Why use Azure Front Door?

3) How Does Azure Front Door Work?

4) Azure Front Door Features

5) Azure Front Door Benefits

6) Core Capabilities of Azure Front Door

7) What is the Difference Between Azure Front Door, Application Gateway, and Azure Gateway?

8) Which Protocols Does Azure Front Door Support?

9) Conclusion

What is Microsoft Azure Front Door?

Azure Front Door is a service-oriented Application Delivery Network (ADN) that provides a suite of layer 7 load-balancing solutions for applications. It’s a highly available, scalable, and Azure-managed service.

This service enhances the performance of web applications worldwide through Dynamic Site Acceleration (DSA) and global load balancing, featuring near-instantaneous failover. The proximity of end-users is a critical factor for global enterprises, as it significantly affects application performance.

To ensure a uniform and improved user experience, enterprises can deploy Content Delivery Networks (CDNs), which utilise multiple distribution points to swiftly deliver content, thanks to optimised connections and geographical closeness to consumers.

Azure Front Door employs the anycast protocol, surpassing traditional CDN functions by incorporating advanced security features like Distributed Denial of Service (DDoS) attack prevention.

The service operates on a globally distributed, multi-tenant infrastructure that is shared among all customers. By creating a Front Door profile, organisations can tailor configurations to their application’s specific needs. Modifications to a Front Door setup are isolated and do not affect other configurations.


Why use Azure Front Door?

Azure Front Door can provide you with the needed improved performance, availability, and security of your web applications by the following:

a) Performance: Azure Front Door can make your web application request delivered faster to the endpoint by shortening the latency and increasing the throughput. It can also cache the static content at the edge and compress the content sent to the user. Azure Front Door was designed with HTTP/2 and IPv6 protocols, which can make your web applications even faster.

b) Availability: Azure Front Door will help you protect the availability and reliability of your Web Applications by checking up on the health and load of your backend servers It can also automatically failover to the best next backend if a failure occurs and distribute the traffic evenly between the available backends.   Azure Front Door, in addition to session affinity, can persist the state of the Web Application across multiple requests.

c) Security: Azure Front Door defends your web applications against cyberattacks by encrypting traffic between users and frontend hosts, and between backend servers and frontend hosts, using SSL/TLS certificates.

Azure Front Door also shields DDoS attacks, that often are called Distributed Denial-of-Service attacks, that are aimed at flooding and crashing your services. Similarly, the service provides a Web Application Firewall (WAF) that can block malicious requests which are injected using SQL injection, cross-site scripting, and remote file inclusion among others.

Register to build a solid foundation in cloud concepts with Microsoft Azure Fundamentals AZ-900 Certification now!

How Does Azure Front Door Work?

The following steps can explain the working of Azure Front Door:

a) The user sends a request to the frontend host of Azure Front Door using the web application.

b) The frontend host receives the request and evaluates the routing rules to determine which backend pool to route it to. For example, if the request is for the URL path /blog, the frontend host may route it to the backend pool that hosts the blog Web Application.

c) The frontend host checks the cache to see if the requested content is cached. If the content is cached and fresh, the frontend host returns it to the user. The frontend host proceeds to the next step if the content is not cached or stale.

d) The frontend host sends a health probe to the backend pool to check the availability and response time of the backend servers. The health probe is a simple HTTP/HTTPS request that expects a 200 OK response from the backend server. The user can configure the health probe frequency and timeout.

e) The frontend host selects the best available backend server from the backend pool based on proximity, health, and load. The frontend host also applies security policies such as SSL/TLS encryption, DDoS protection, and Web Application Firewall (WAF) to the request.

f) The frontend host forwards the request to the selected backend server using the original URL or a modified URL based on the routing rules. For example, if the request is for the URL path /blog, the frontend host may forward the request to the backend server.

g) The backend server processes the request and returns the response to the frontend host. The response may contain static or dynamic content, such as HTML, CSS, JavaScript, images, or videos.

h) The frontend host receives the response and caches it if enabled, and the response meets the caching criteria. If the compression is enabled and the response is compressible, the frontend host compresses the response.

i) The frontend host returns the response to the user using the same protocol and URL as the request. The user receives the response and renders the content on their device.

To become proficient at using Microsoft Azure, sign up for our Microsoft Azure Big Data Analytics Solutions M552241 Course now!

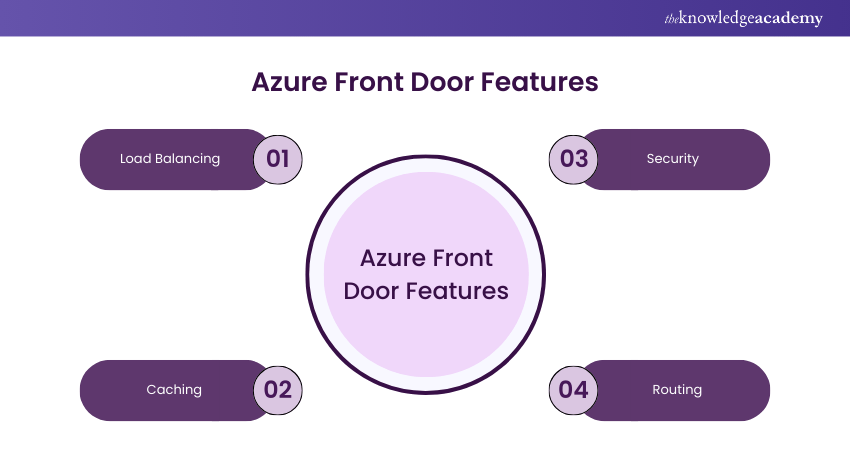

Azure Front Door Features

Azure Front Door offers a range of features that can help you optimise your web applications' performance, availability, and security. Some of the key features are:


Load Balancing

Azure Front Door can balance the load among multiple backend servers using round-robin, weighted round-robin, active-passive, or performance-based algorithms. You can also configure custom load-balancing settings for each backend server, such as session affinity, priority, or weight.

Caching

Azure Front Door can cache the static content of your web applications at the edge, using the frontend hosts as cache nodes. For each routing rule, you can configure cache settings such as cache duration, behaviour, key, or bypass. You can also purge the cache manually or programmatically when needed.

Security

Azure Front Door can secure the traffic between the user and the frontend host and between the frontend host and the backend server, employing the SSL/TLS certificates. You can use either your own custom domain and certificate or the default domain and certificate which are provided by Azure Front Door. Azure Front Door also offers DDoS protection that can detect and mitigate distributed denial-of-service attacks on your web applications.

Further, Azure Front Door has a Web Application Firewall (WAF) that filters out malicious requests like SQL injection, cross-site scripting or remote file inclusion that are most common web vulnerabilities. You have an option to build your own WAF policies and rules or may use the predefined ones provided by Azure Front Door.

Routing

Azure Front Door can route the requests from the frontend hosts to the backend pools using your defined routing rules. You can create routing rules based on criteria such as URL path, HTTP method, header, query string, or cookie. You can also configure routing rules to enable caching, compression, redirection, rewriting, or custom forwarding. Each routing rule has a priority that determines the order of evaluation.

Enhance your skills in Azure big data analytics and get certified with Microsoft Azure Big Data Analytics Solutions M552241 Training. Get started now!

Azure Front Door Benefits

Here are the advantages of it:

1) Faster Application Performance

Azure Front Door speeds up your web applications by reducing loading times and improving responsiveness. It uses caching and efficient routing to deliver content quickly to users worldwide. HTTP/2 and compression features further enhance performance. This ensures a smooth experience for users, even during high traffic.

2) Improved Availability and Reliability

Azure Front Door ensures your applications stay online by monitoring backend health and traffic. If one server fails, it automatically routes users to the next best server. Load balancing evenly distributes traffic across servers to avoid overloads. This keeps your application available and responsive at all times.

3) Enhanced Security Features

Azure Front Door protects your application from cyberattacks like DDoS and malicious requests. It uses SSL/TLS encryption to secure data between users and servers. The built-in Web Application Firewall (WAF) blocks threats like SQL injection and cross-site scripting. These measures safeguard your application and user data.

4) Global Scalability

Azure Front Door helps your application scale to meet growing demand across regions. It uses Microsoft’s global network to connect users to the nearest data centre. This reduces latency and provides a seamless experience for users anywhere in the world. You can easily adapt to traffic increases without manual intervention.

Core Capabilities of Azure Front Door

Let’s look at some of the core capabilities of Azure Front Door:

a)  Application and API Acceleration: The Azure Front Door is set up so that Anycast is used to optimally connect to Azure application services. It ensures this by minimising the delay for each end user, which means their applications and APIs can be accessed quickly.

b) SSL Offload: Simpler and cheaper SSL decryption is offloaded upstream at Azure's Front Door, avoiding expensive computations at the endpoints. This improves performance and promotes real-time services and responsiveness at the front end.

c) Global HTTP Load Balancing: It is easy to put the geo-distributed services leveraging the Front Door of Azure. Smartly traversing paths will route traffic to local areas and endpoints as dictated by the endpoints’ availability status. This way, regions are utilising each region well, therefore working efficiently across different areas.

d) Web Application Firewall (WAF): Azure is trying to build Front Door with web application filtering at the border. Shields the servers from DDoS and malicious users while providing uninterrupted continuity with backend services. Doing so ensures your app's security goes smoothly.

Do you want to gain a competitive edge in the market? Then register now for our Microsoft Azure Training!

What is the Difference Between Azure Front Door, Application Gateway, and Azure Gateway?

Azure Front Door is designed for global load balancing and routing traffic to the best backend across regions. Application Gateway focuses on managing traffic within a single region with advanced features like application-level routing. Azure Gateway is mainly used for secure connections to your on-premises network, like a VPN.

Which Protocols Does Azure Front Door Support?

Azure Front Door supports HTTP, HTTPS, and WebSocket for handling web application traffic. It also works with modern technologies like HTTP/2 and IPv6 for faster and more efficient connections. These protocols ensure secure and high-performance communication for your users.

Get ready for your Azure Fundamentals exam with the Microsoft Azure Fundamentals PDF. Start your preparation today with all the essential topics covered!

Conclusion

Azure Front Door is a powerful and versatile service that can help you deliver fast, reliable, and secure web applications worldwide. It offers Load Balancing, caching, security, and routing features to optimise your Web Application's performance and availability. It also supports any protocol, backend, domain, and region.
