What is 3D Printing? An Ultimate Guide



From manufacturing prototypes to crafting intricate designs, 3D Printing has rapidly carved its niche across various industries. However, if you are new to the domain of Manufacturing and Design, you might be wondering, “What is 3D Printing?

In a world where innovation is the driving force behind technological advancements, 3D Printing stands out as a revolutionary and transformative technology. From creating prototypes in engineering to producing bespoke items in fashion, it is reshaping the Manufacturing process.

Thus, you see, the future of Design lies in the hands of this transformative technology. So, it is the time to get familiar with the concept. In this blog, you will learn about What is 3D Printing, its mechanisms, several types and its advantages and disadvantages. Read ahead to learn more!

Table of Contents

1) Understanding What is 3D Printing

2) The working mechanism of 3D Printing

3) Different types of 3D Printing

4) Advantages of 3D Printing

5) Disadvantages of 3D Printing

6) Conclusion

Understanding What is 3D Printing

3D Printing is a groundbreaking technique used in Manufacturing and Design that creates physical objects from digital models by adding material layer by layer. This process, or additive Manufacturing, contrasts traditional subtractive methods, where the material is removed to shape an object. 3D Printing can utilise various materials, including plastics, metals, and ceramics.

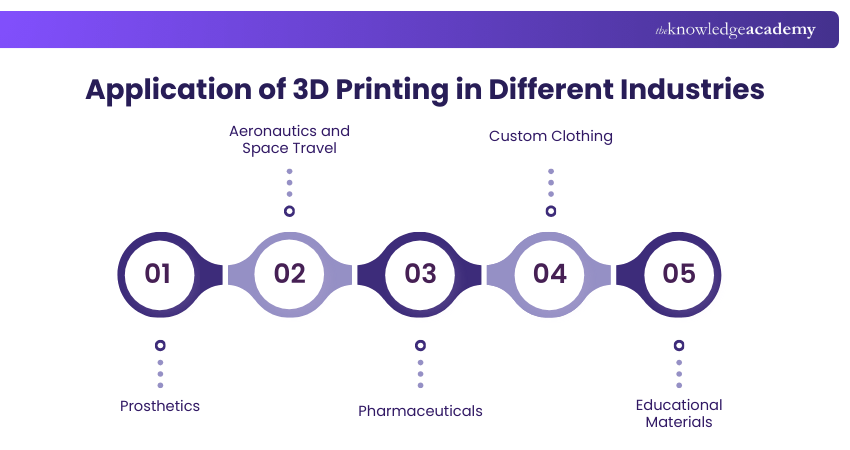

It also has various applications, from medical implants and aerospace components to fashion accessories and architectural models. Its capability to produce complex geometries with high precision and customisation is revolutionising industries, offering new possibilities in design, prototyping, and production while posing unique challenges and opportunities for innovation.





The working mechanism of 3D Printing

After learning What is 3D Printing, it is time to understand the basic working mechanism of 3D Printing. Primarily, there are two ways in which 3-dimensional Printing can be done. So, let’s have a detailed look at each of them:

3D Software



The efficacy of 3D Printing hinges on sophisticated software, which transforms digital designs into tangible objects. This process begins with a Computer-Aided Design (CAD) program, where detailed 3D models are created. These programs allow the creation of precise designs, which is essential for intricate or functional objects.

Ongoing advancements in 3D Printing software are broadening its applications and accessibility. Features like automated design corrections, improved user interfaces, and more efficient slicing algorithms are streamlining the printing process. This evolution enhances the practicality of 3D Printing and expands its creative and functional capabilities, making it an increasingly vital tool across various industries.

Slicing: Transforming a file into instructions for a 3D Printer





Slicing is a critical phase in the 3D Printing process. It serves as the bridge between a digital 3D model and the physical object produced by a 3D Printer. It involves converting a 3D design file, typically in formats like STL or OBJ, into instructions that only a 3D Printer can understand and execute. This is achieved using specialised slicing software.

The Slicing software analyses the 3D model and divides it into hundreds or thousands of horizontal layers, effectively creating a detailed map of the object in slices. These layers are further sequentially made by the Printer, building the object from the bottom up. The software calculates the exact movements, temperatures, and material amounts needed for each layer. This process takes place using specific settings such as the following:

a) Layer height: Determines the resolution of the print.

b) Infill density: Affects the strength and material usage.

c) Print speed: Influences the time and quality of the print.

The output of the Slicing process is a G-code file, a standard industry language that 3D Printers use. This code provides detailed commands for every aspect of the printing process, including where to move, how fast to move, and how much material to extrude.

Slicing not only translates a design into a printable format but also allows for customisation of the print according to the material, printer specifications, and desired properties of the final object. The precision and quality of the final print are significantly influenced by the settings chosen during the slicing process. As a result, it becomes a vital step in transforming the digital model into physical reality.

Do you want to become an expert in Animation and Design? Register now for our Animation and Design Training!

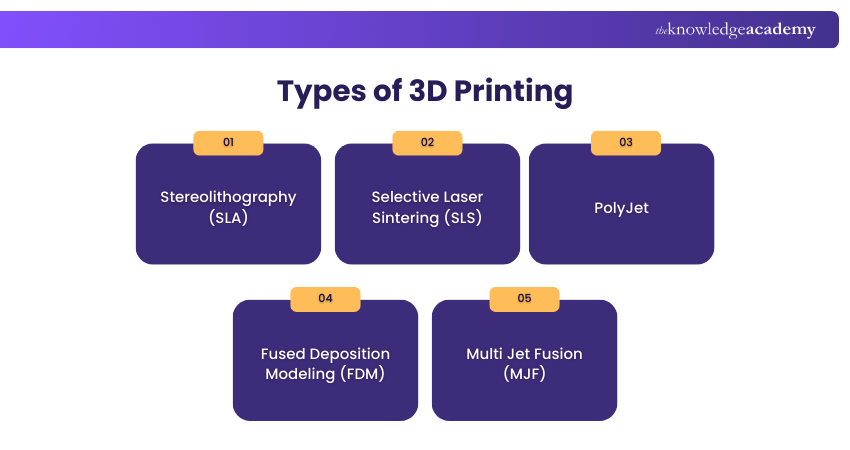

Different types of 3D Printing

Since 3D Printing is already transforming various processes across different industries, you must be aware of the types of 3D Printing technologies that you can utilise for different purposes in your organisation. Let’s look at some of these types:

Binder Jetting

Binder Jetting is a distinct 3D Printing technology that builds objects by selectively depositing a liquid binding agent onto a powder bed, layer by layer. Unlike other Additive Manufacturing methods, it does not involve melting or fusing material. Instead, an inkjet print head precisely applies the binder onto a powder layer, typically made of metal, sand, or ceramic.

After each layer is printed, a new layer of powder is spread over it, and the process repeats until the object is complete. Post-printing, the removal of the excess powder takes place, revealing the bound object. However, this may undergo additional post-processing steps like curing or infiltration to enhance its strength and durability.

Binder Jetting is renowned for its ability to produce complex geometries, including internal cavities. Moreover, it is widely used for rapid prototyping, casting moulds, and manufacturing functional metal parts. Here's what 3D Printing using Binder Jetting looks like:




Direct Energy Deposition

Direct Energy Deposition (DED) is an advanced 3D Printing technique primarily used for repairing or adding material to existing components. In this process, a focused energy source, like a laser or an electron beam, is utilised to melt the material. The materials, often metal powder or wire, are fed directly into the energy beam and melted upon contact with the target surface. Here's how the process takes place:





DED allows for material application to specific areas, making it ideal for repairing parts or adding features to metal components. This method is highly valued in industries such as Aerospace and tooling.

Moreover, this technique is known for its ability to extend the life of expensive components by repairing wear or damage and its capacity to fabricate parts with complex geometries and gradient material properties. The versatility and precision of DED make it a key technology in the field of additive manufacturing.

Are you interested in learning 3D Printing? Register for our 3D Printing Training now!

Material Extrusion

Material Extrusion is a fundamental technique in 3D Printing, also known as Additive Manufacturing. In this process, a 3D Printer constructs objects layer by layer by depositing and building up material in a controlled manner. The term "Material Extrusion" specifically refers to the method of feeding a continuous filament of material, typically thermoplastic polymers such as PLA or ABS, through a heated nozzle.

The filament is heated within the Printer's extruder to a temperature where it becomes malleable or molten. Once in this state, the Printer nozzle moves along a predetermined path. This nozzle precisely deposits the melted material layer by layer to gradually form the desired object. As each layer solidifies upon deposition, the 3D Print progressively takes shape. Here's what the structure of a Material Extruder looks like:

Material extrusion is widely used due to its versatility, cost-effectiveness, and accessibility. This method allows for the creation of a diverse range of objects, from prototypes to intricate designs, making it a popular choice in various industries and among hobbyists alike.

Material Jetting

Material Jetting in 3D Printing operates similarly to inkjet document printing, but instead of ink, it uses liquid photopolymer materials. The process involves jetting tiny droplets of material onto a building platform, layer by layer, which are then cured and solidified using ultraviolet (UV) light. This technology is renowned for its high resolution and ability to print in fine detail. Thus, it is suitable for applications that require precise geometries and smooth surface finishes.





For example, in dental models, intricate jewellery, and detailed prototypes, Material Jetting enables the simultaneous printing of parts in multiple colours and materials. Thus, it offers significant versatility in product design and prototyping. The precision and quality of the prints, along with the ability to use various materials, make Material Jetting a popular choice for applications where detail and aesthetics are important.

Enhance your learning in 2D Animation with our 2D Animation Training - join now!

Powder Bed Fusion

Powder Bed Fusion is a versatile 3D Printing technique that involves selectively fusing regions of a powder bed using either a laser or electron beam. Commonly used materials include polymers, metals, and ceramics.

In this process, a fine layer of powder is spread across the build platform. The printing beam then precisely melts and fuses powder particles in specific areas, as defined by a digital model. After each layer is fused, a new layer of powder is applied, and the process is repeated till the object is fully formed. Here's what the structure of a Power Bed looks like:





Powder Bed Fusion is renowned for its ability to produce solid and complex parts with high precision. It's widely used in aerospace, automotive, and medical industries for manufacturing functional components and prototypes. The key advantages of this technology are its material efficiency and the quality of the parts produced. It also can create complex geometries that are challenging for other manufacturing methods.

Sheet Lamination

In the context of 3D Printing, Sheet Lamination involves layering sheets of material that are bonded together and then cut to shape. This process can be used for various materials, including paper, metal, and polymer films.

The sheets are typically coated with adhesive and stacked layer upon layer. A laser or blade then precisely cuts each layer to match the cross-sectional shape of the object being printed, as defined by a digital model. The unneeded material is either removed or remains as support. The following image shows the essential components involved in the Sheet Lamination process:





This method is particularly efficient for creating large objects rapidly and can incorporate different materials in a single print. Its applications include creating models for architectural, engineering, and educational purposes. While it may not offer the same level of detail as other 3D Printing techniques, Sheet Lamination is valued for its speed, material diversity, and cost-effectiveness, especially in producing larger-scale objects.

Do you want to acquire knowledge of Architectural Design? Sign up now for our Architectural Design and Animation in Blender Training!

Advantages of 3D Printing

The following are some advantages of using 3D Printing techniques:

a) Rapid prototyping: 3D Printing allows for the quick creation of prototypes. Thus, it enables faster design and testing cycles compared to traditional manufacturing methods.

b) Complex geometries: It can produce numerous complex shapes and internal structures, which would be difficult to achieve with conventional manufacturing.

c) Customisation: Offers unparalleled flexibility in customising products to specific needs or preferences, ideal for personalised medical devices, custom-fit apparel, and bespoke consumer products.

d) Reduced material waste: Additive Manufacturing processes use only the material needed to create the object. As a result, they significantly reduce waste compared to subtractive methods.

e) Cost-effective for small productions: 3D Printing is more economically feasible for small batch production than traditional manufacturing, which often requires expensive moulds and tooling.

f) Accessibility: Advances in technology have made 3D Printers more accessible and affordable. This advancement has opened up many possibilities for hobbyists, small businesses, and educational institutions.

g) Lightweight and robust designs: Especially with Metal Printing, it’s possible to create lighter and stronger parts than those made through traditional methods, benefiting industries like aerospace and automotive.

h) Time savings: The ability to go from design to finished product quickly without setting up various machines or tools saves significant time.

i) Reduced inventory costs: On-demand production means companies can reduce or eliminate the need to store extensive inventories of products or parts.

j) Environmental benefits: Potential for less transportation of goods and more localised production, leading to lower carbon emissions.

Enhance your skills in Dimensional Modelling with our Dimensional Modelling Foundations Training - sign up now!

Disadvantages of 3D Printing

Even though 3D Printing has many benefits, there are still some disadvantages. Let us look at some of the disadvantages of 3D Printing:

a) Limited materials: While the range is expanding, 3D Printing materials still need to be improved compared to traditional manufacturing, especially for high-strength or specialised applications.

b) Lower strength: Parts produced by 3D Printing can be less sturdy than those made through conventional methods. It can often be due to the layer-by-layer construction, which can create weak points.

c) Surface finish and precision: The surface finish of 3D printed objects can be rougher than those produced by traditional methods. Moreover, the accuracy might only sometimes meet the required standards for some applications.

d) Speed for mass production: While fast for prototypes, 3D Printing can be slower and less efficient than traditional manufacturing processes.

e) Cost of large-scale printing: For large-scale objects, the cost of 3D Printing can be high in terms of material costs and the time required for printing.

f) Size limitations: Most 3D printers have a limited build volume, restricting the size of objects that can be printed in one piece.

g) Energy consumption: Certain 3D Printing processes, particularly those involving metals, can require significant energy.

h) Post-processing requirements: Many 3D printed parts require additional processing after printing, such as cleaning, curing, or surface finishing, which adds time and cost to the process.

i) Intellectual property concerns: The ease of copying and distributing digital designs raises concerns about intellectual property rights and the potential for counterfeiting.

j) Environmental impact: While 3D Printing reduces material waste, the energy consumption and potential toxicity of materials, particularly in resin and plastic-based processes, can be environmental concerns.

Acquire extensive knowledge of Motions Graphics with our Motion Graphics Masterclass - join today!

Conclusion

We hope that after reading this blog, you have understood What is 3D Printing. It stands as a transformative technology reshaping Manufacturing and Design. Its ability to rapidly prototype, customise products, and create complex geometries offers significant advantages. However, challenges like material limitations, strength concerns, and environmental impacts highlight the need for ongoing innovation and responsible application in this rapidly evolving field.
